Modeling of a Kettle Reboiler Using Shortcut Heat Duty Transfer Method in Aspen Plus
Project Description
Kettle reboilers cannot be directly modeled using the shortcut method in Aspen Plus, as this method does not require or support detailed exchanger geometry or configuration data. However, an effective workaround involves using a Heat Exchanger block to calculate the required heat duty, which is then applied to a Flash2 block via a transfer mechanism. This setup successfully replicates the phase separation and thermal behavior typical of a kettle reboiler. It provides a practical and time-efficient solution for early-stage design and screening studies, where quick estimations are prioritized over detailed equipment modeling.
Project Objectives
Modeling kettle reboilers using the shortcut method is limited by the absence of detailed equipment input. This project presents a simplified workaround to replicate kettle reboiler behavior using HeatX and Flash2 blocks, ideal for early-stage design. The key objectives are outlined below:
- Simulate kettle reboiler behavior using a combination of HeatX and Flash2 blocks.
- Eliminate the need for detailed exchanger geometry through shortcut modeling.
- Apply calculated heat duty via transfer blocks to mimic thermal effects.
- Support rapid and practical process design in early feasibility studies.

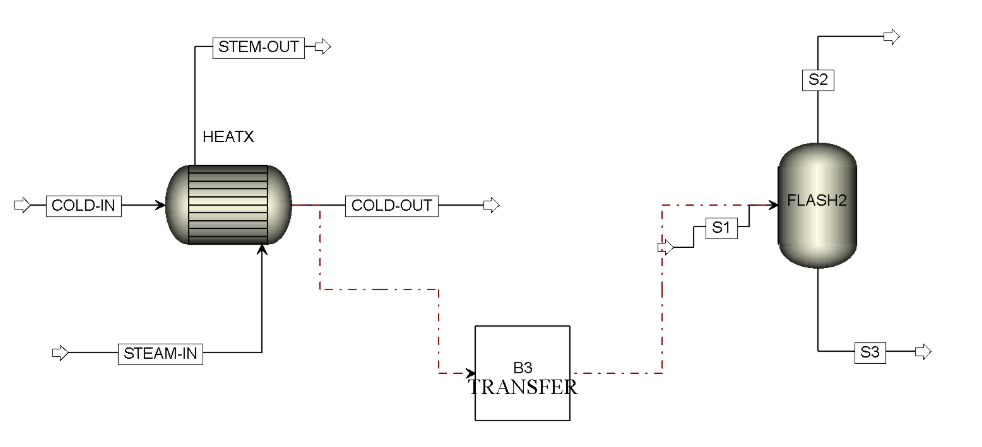

Process Flow Diagram
Project Insights
Simplified Simulation Strategy
- Mimics kettle reboiler behavior using HeatX and Flash2 blocks.
- Eliminates the need for detailed exchanger configuration data.
Efficient Use of Shortcut Method
- Applies shortcut heat exchanger logic for rapid simulation.
- Enables quick setup without geometry or design specifics.
Practical Workaround Implementation
- Transfers calculated heat duty from HeatX to Flash2 unit.
- Reproduces phase behavior typical of kettle reboilers.
Suitable for Early-Stage Design
- Supports fast evaluation in screening or feasibility studies.
- Prioritizes simulation speed over detailed equipment modeling.
Conclusion
This project presents a practical approach to simulate kettle reboilers using the shortcut method in Aspen Plus. By transferring heat duty from a HeatX block to a Flash2 block, it effectively replicates the thermal and phase separation behavior of a kettle reboiler without requiring detailed exchanger design. This method offers a time-efficient solution suitable for early-stage process evaluations where simplicity and speed are prioritized.
